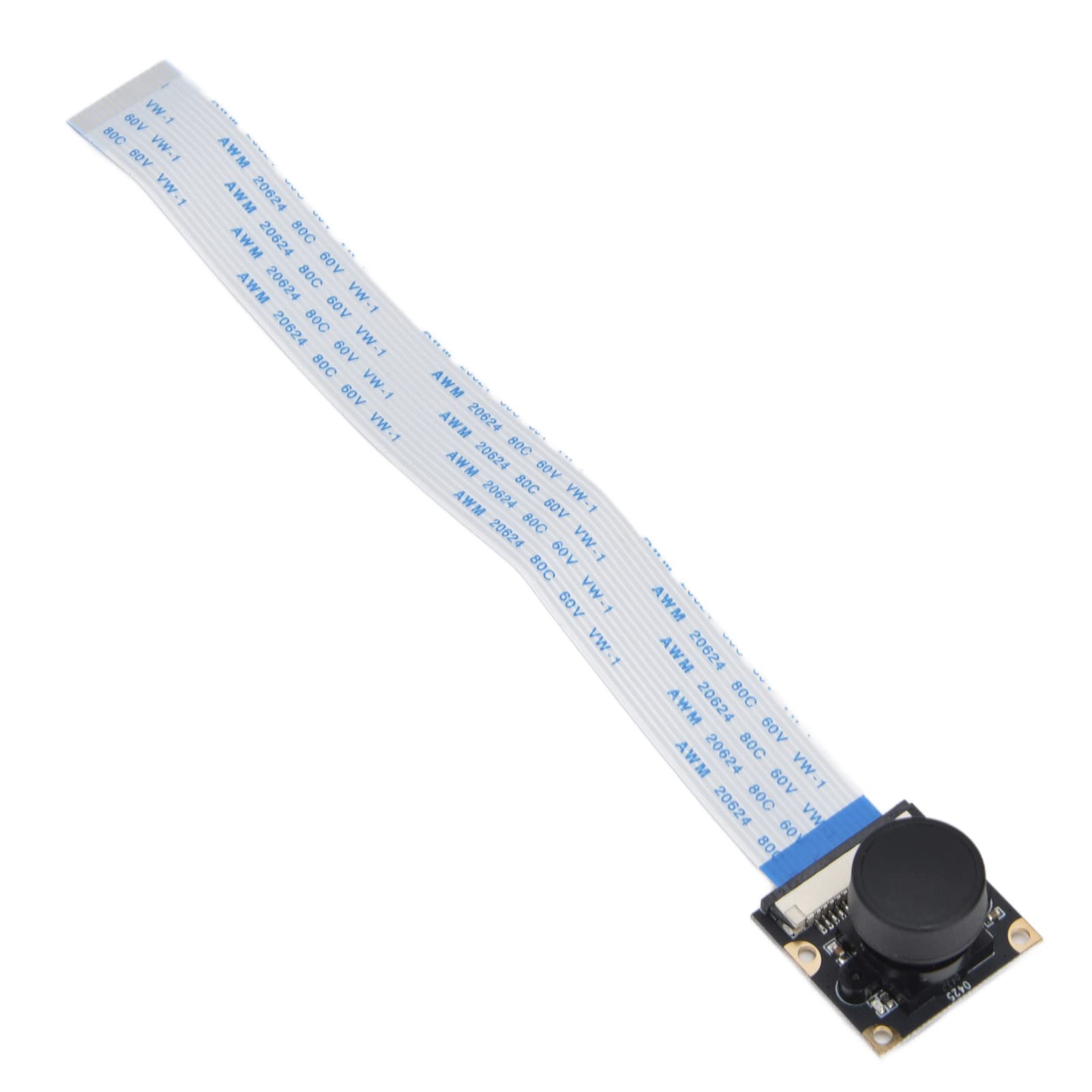

HBVCAM-HPLCC-8M-130 8MP Camera Module - 1/4in CMOS Sensor, 3280x2464 Resolution, 130° Wide Angle Lens with Screw Mount - Ideal for Scene Recognition, Surveillance Systems & IoT Devices (3.15mm Length)

Feature:1. Clear Image: With 8MP lens, the image picture is clearer, and the HD sensor chip IMX219 is used, and the performance is stable2. Viewing Range: The camera has a 130° diagonal field of view and a 3.15mm length, allowing a larger viewing range3. Other Functions: The camera can support infrared night vision function when used with the fill light, and it has strong practicability4. Easy Installation: The camera board is small and compact with 4 screw holes for simple and quick installation5. Multiple Usages: Often used in various scene recognition judgments such as face, road markings and license plate recognitionHow to Use:To test the camera, open for Jetson terminalWrite Command: nvgstcapture‑1.0, the camera will run shootingFor Example:1.‑‑prev‑res preview video resolution, height and width, the range is 2 to 12 (5632x4224) if the CSI camera is usede.g., nvgstcapture‑1.0‑‑prev‑res=3Specification:Item Type: Camera ModuleProduct Model: HBVCAM-HPLCC-8M-130Pixel: 8MPPhotosensitive Chip: For Sony IMX219Resolution: 3280 x 2464CMOS Size: 1/4inAperture(F): 2.35Focal Length: 3.15mmDiagonal Field of View(FOV): 130°Distortion: <14.3%4 Screw Holes: Can be used in a fixed positionSupport 3.3V external power supplySupport connect to infrared light or fill lightBoard Size: Approx. 25 x 24mm / 0.98 x 0.94in Package List:1 x Camera Module
