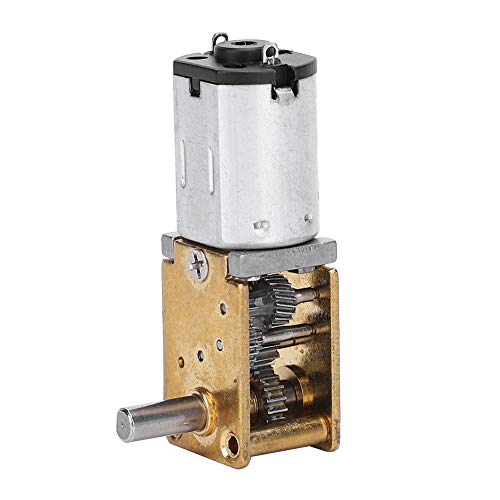

Specification: Item Type: Mini Gear Motor Material: Copper, brass, zinc alloy Model: 1218GE-N20 Motor Type: Brush DC motor Mainly used in electronic locks, smart car, robots, cameras, etc. Parameter: Voltage Reduction ratio No-load Load Block load Rotate speed Current Rotate speed Current Torsion Current Torsion 3V 1:236 16RPM ≤30MA 13RPM ≤40MA 120g.cm ≤0.4A 2.6KG.CM 3V 1:236 30RPM ≤30MA 25RPM ≤40MA 160g.cm ≤0.4A 2.2KG.CM 6V 1:236 35RPM ≤50MA 28RPM ≤40MA 220g.cm ≤0.4A 1.5KG.CM 6V 1:236 70RPM ≤60MA 61RPM ≤40MA 320g.cm ≤0.4A 2.2KG.CM Size: Approx. 8.5mm / 0.3in Approx. 4mm / 0.2in Approx. 8mm / 0.3in Approx. 10mm / 0.4in Approx. 7.5mm / 0.3in Approx. 0.5mm / 0in Approx. 18mm / 0.7in Approx. 10mm / 0.4in Approx. 12mm / 0.5in Approx. 2.5mm / 0.1in Approx. 18mm / 0.7in Approx. 15.1mm / 0.6in Diameter: Approx. 3mm / 0.1in Approx. 4mm / 0.2in Approx. 12mm / 0.5in Package List: 1 x Mini Gear Motor Note: Please allow 0.1mm error due to manual measurement. Thanks for your understanding.
【APPLICATIONS】Our electric motors is widely used in some occasions that require installation size. Geared motors operate at a low volume, it is solidly constructed and ready to install in numerous applications, such as electronic locks, smart car, robots, cameras, etc.
【SMALL ELECTRIC MOTOR PARAMETER】This brushless dc motor is made of copper, brass, zinc alloy, which is durable and has a long service life. high accuracy gear design, small size, and high efficiency and stable to operate.
【 STRONG MOTOR POWER OUTPUT】This brush DC motor have strong motor power output, which is powerful and practical.3 layers of high‑density molecular paint coating can effectively insulate dust and resistant to high temperature.
【STABLE PERFORMANCE】Gear transmission is stable, wear‑resistant, and possess large transmission strength. Our electric motors is widely applications, bring your unique experience.
【NO RISK PURCHASE】Customer satisfaction is our pursuit. Products will inevitably encounter some bumps during transportation. The product will inevitably encounter some bumps during transportation, which may to the receipt of bumped items. If you encounter this, please contact us, and the staff will reply within 24 hours.
